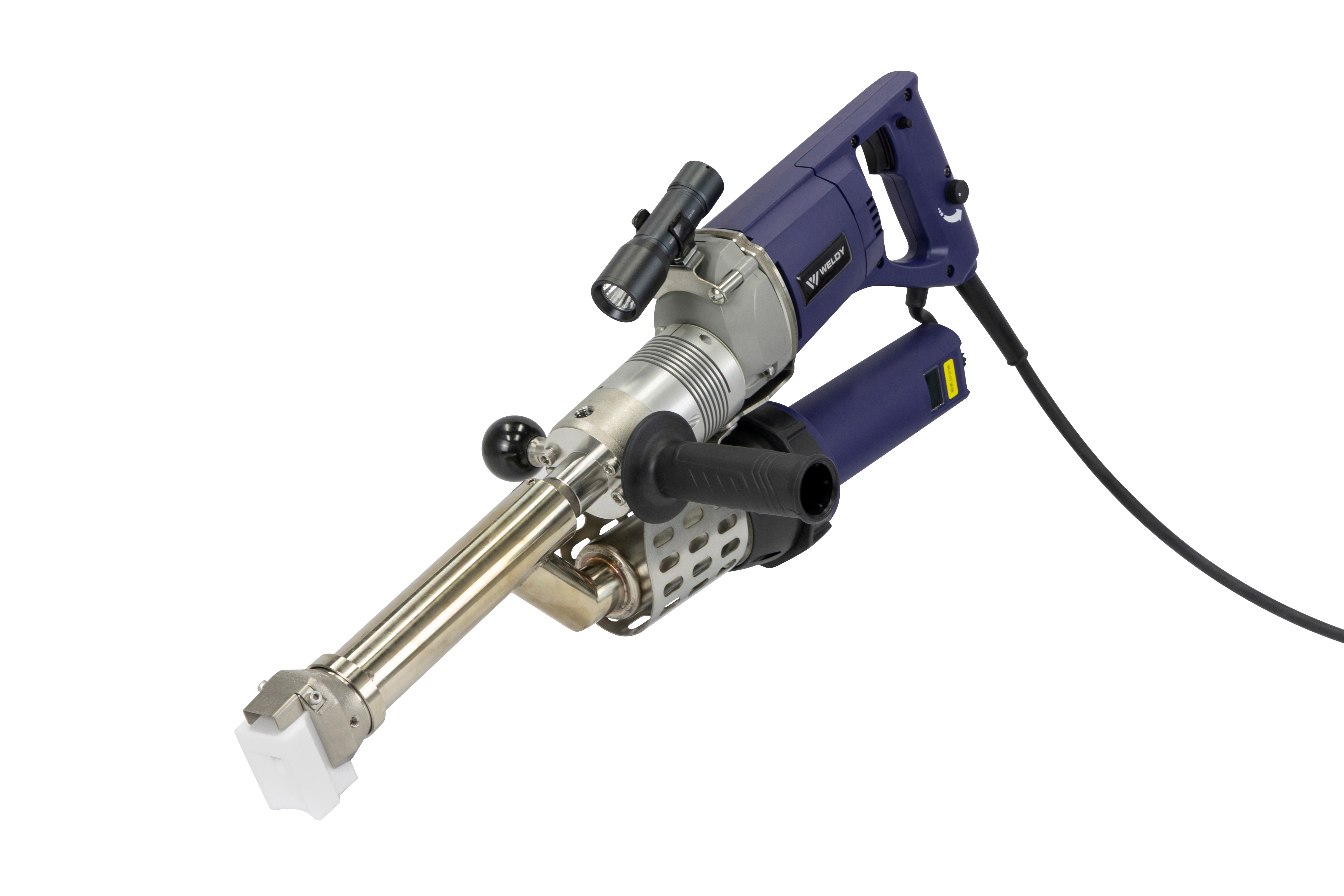

Booster EX3 Plus: Control, Protection, High Output

Adjust Extrusion Speed and Temperature for the Task

PP and PE fabrication can involve different material thicknesses and welding requirements. The booster EX3 Plus lets you adjust extrusion speed and temperature to suit the application, providing the control needed for consistent extrusion welding. With a material output of up to 3.6 kilograms per hour, the extrusion welder supports consistent, high-output work. It processes PP and PE with three- or four-millimeter welding rods.

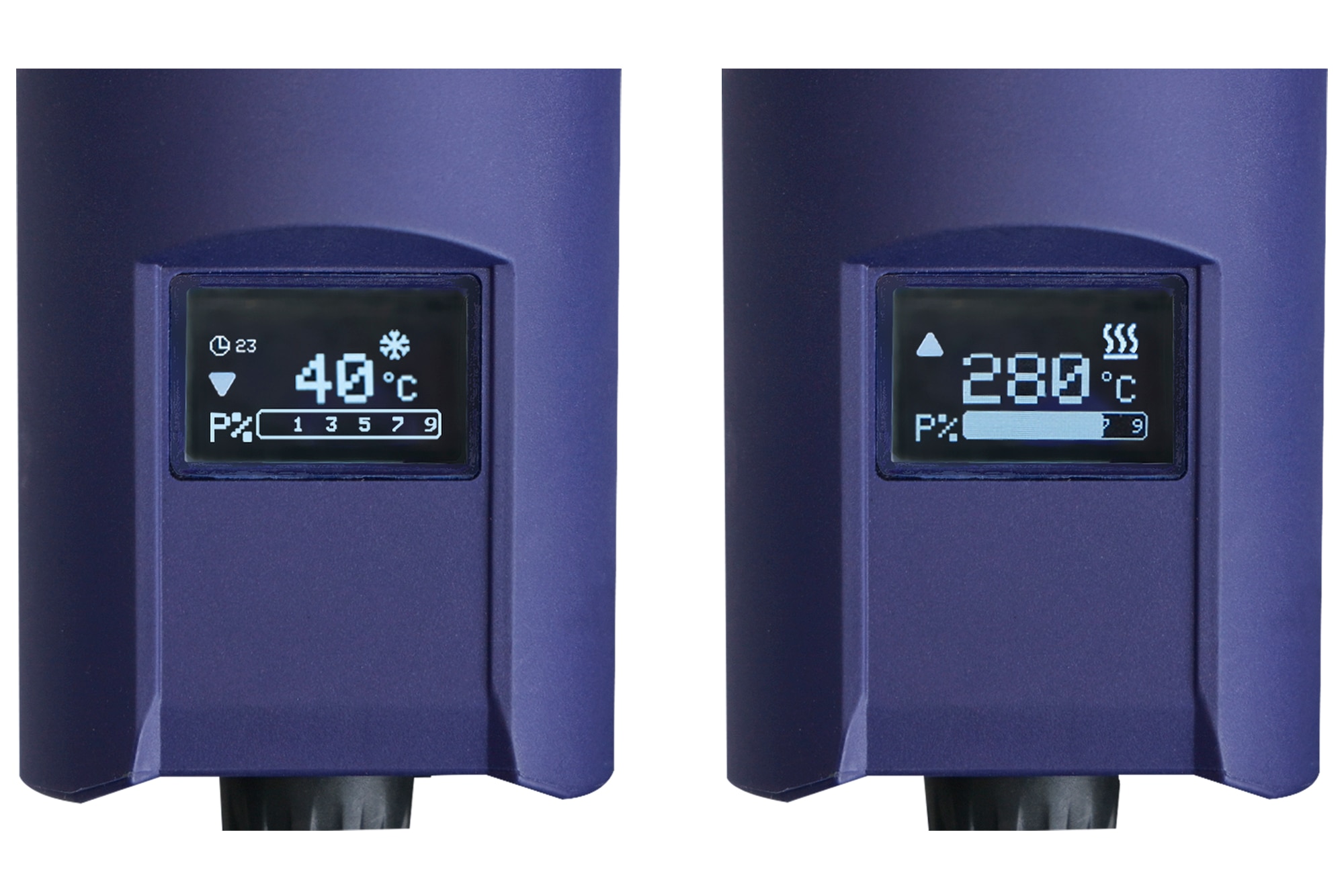

Monitor the Temperature in Real Time

The digital temperature display provides real-time monitoring while you work. This keeps the selected temperature visible and supports better process control.

Built-In Functions Support Stable Operation

The automatic cool-down function, anti-burn protection and built-in overcurrent protection work together to support a stable and controlled welding process. If the overcurrent protection is triggered, it resets automatically after five seconds. A reinforced lock pin on the switch adds another practical safety feature, helping you work reliably without unnecessary complexity.

Clear View and Flexible Positioning

The integrated LED working light illuminates the welding area and keeps the workpiece clearly visible. For flexible tool positioning, the welding shoe can be adjusted through 360° to suit different welding tasks.

High Output Combined with Practical Process Control

The booster EX3 Plus combines adjustable settings and digital monitoring with a material output of 2.5 to 3.6 kilograms per hour. It processes HDPE, LDPE, LLDPE and PP using three- or four-millimeter welding wire, giving you flexibility across different fabrication and repair tasks.

The 230-volt extrusion welder delivers up to 3000 watts of power. With dimensions of 600 × 100 × 220 millimeters and a weight of 7.2 kilograms, it combines high output with practical handling.

This makes the booster EX3 Plus a reliable companion by your side for fabrication and repair work.

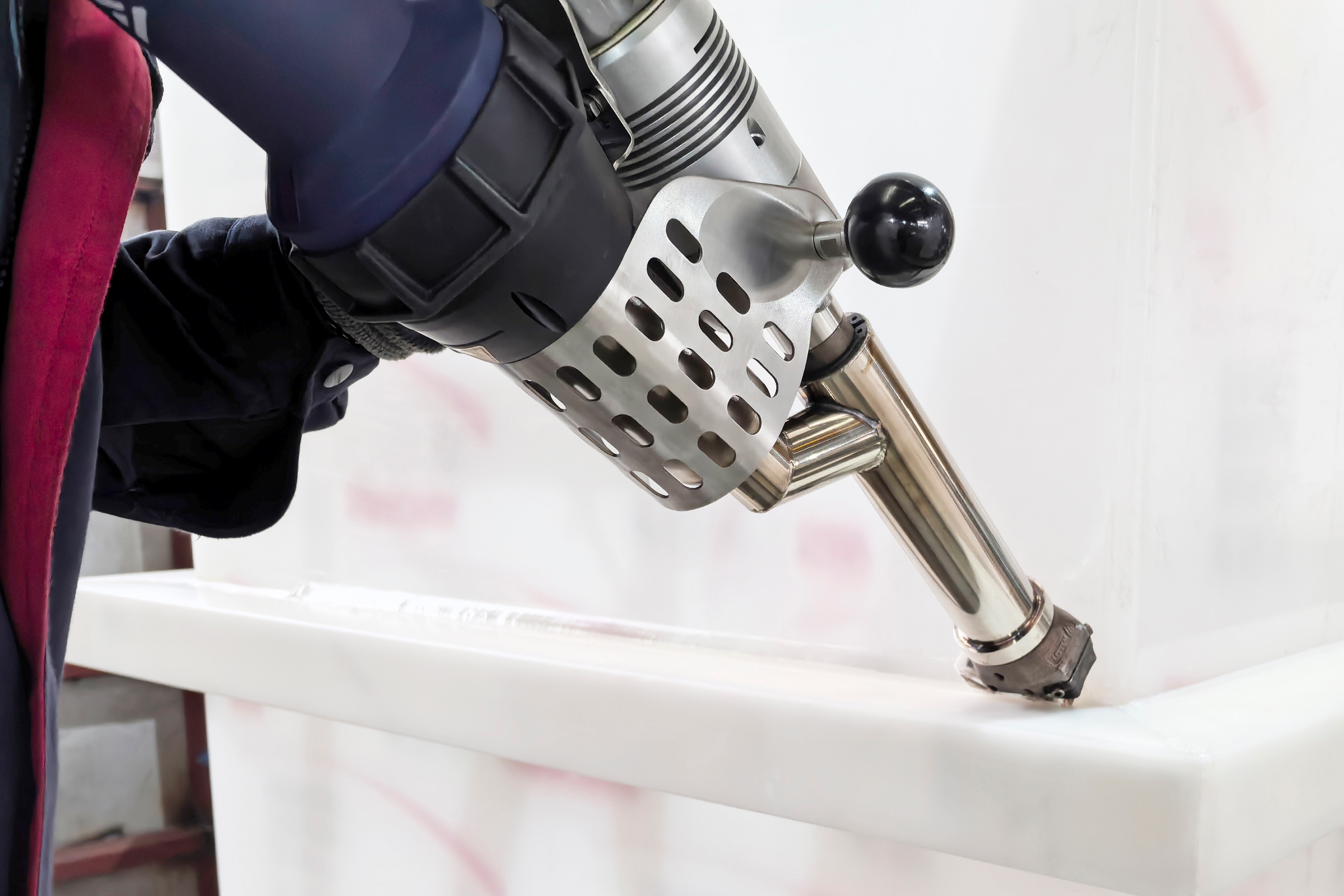

Flexible PP and PE Welding Across Many Applications

The booster EX3 Plus is designed for plastic fabrication as well as GEO and civil engineering. Typical applications include plastic tank fabrication, aquaculture construction and repair, boat construction and repair, waterproofing reservoirs and canals, and membrane welding in landfill and mining projects.

The adjustable speed and temperature settings give you the flexibility to use the same extrusion welder across different PP and PE projects.

Your Key Benefits of the booster EX3 Plus

• Match the material and task with adjustable extrusion speed
• Better process control with real-time temperature monitoring on the digital display
• Work efficiently with a material output of up to 3.6 kilograms per hour
• Keep the welding area clearly visible with the integrated LED light
• Position the tool flexibly with the 360°adjustable welding shoe
• Support safer operation with automatic cool-down and anti-burn protection
• Reduce interruptions with overcurrent protection and automatic reset after five seconds
• Benefit from secure operation with the reinforced switch lock pin

Looking for a simple and reliable solution for PP or PE fabrication?

Contact us - Our team supports you in finding the right solution for your application.
