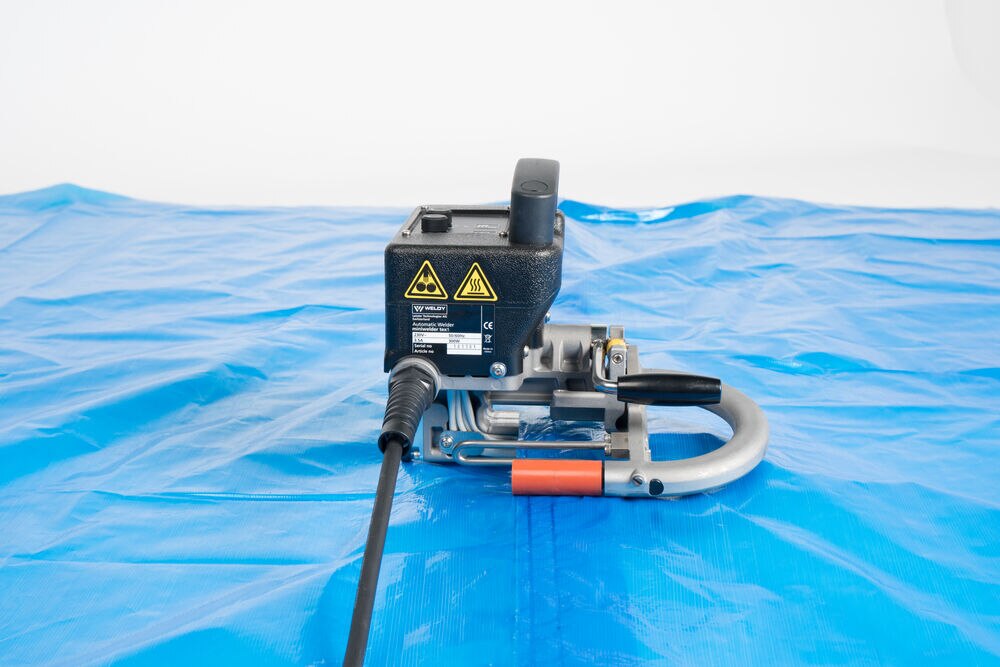

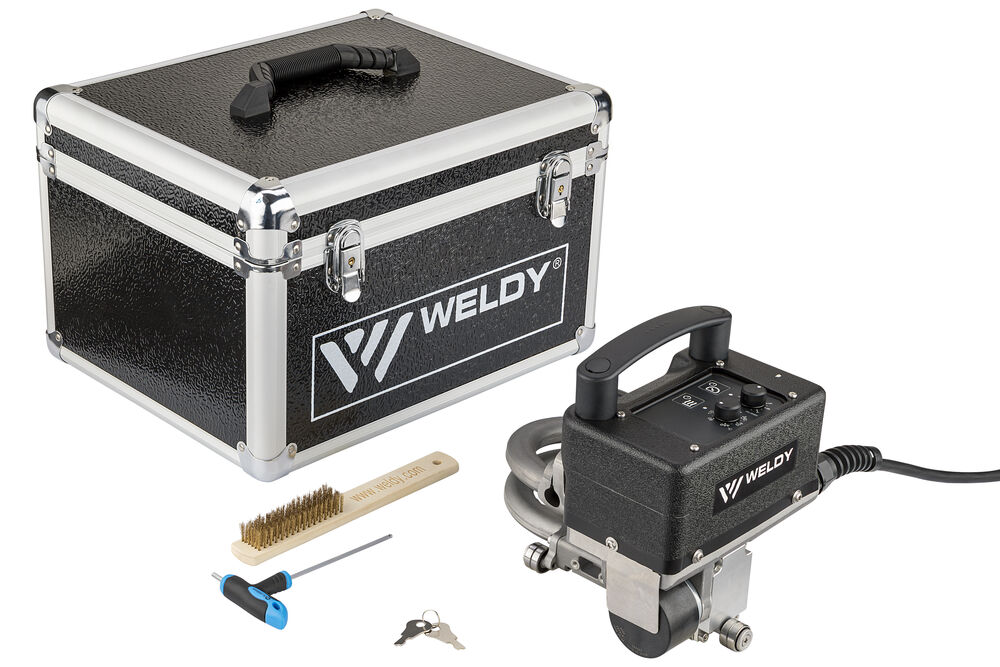

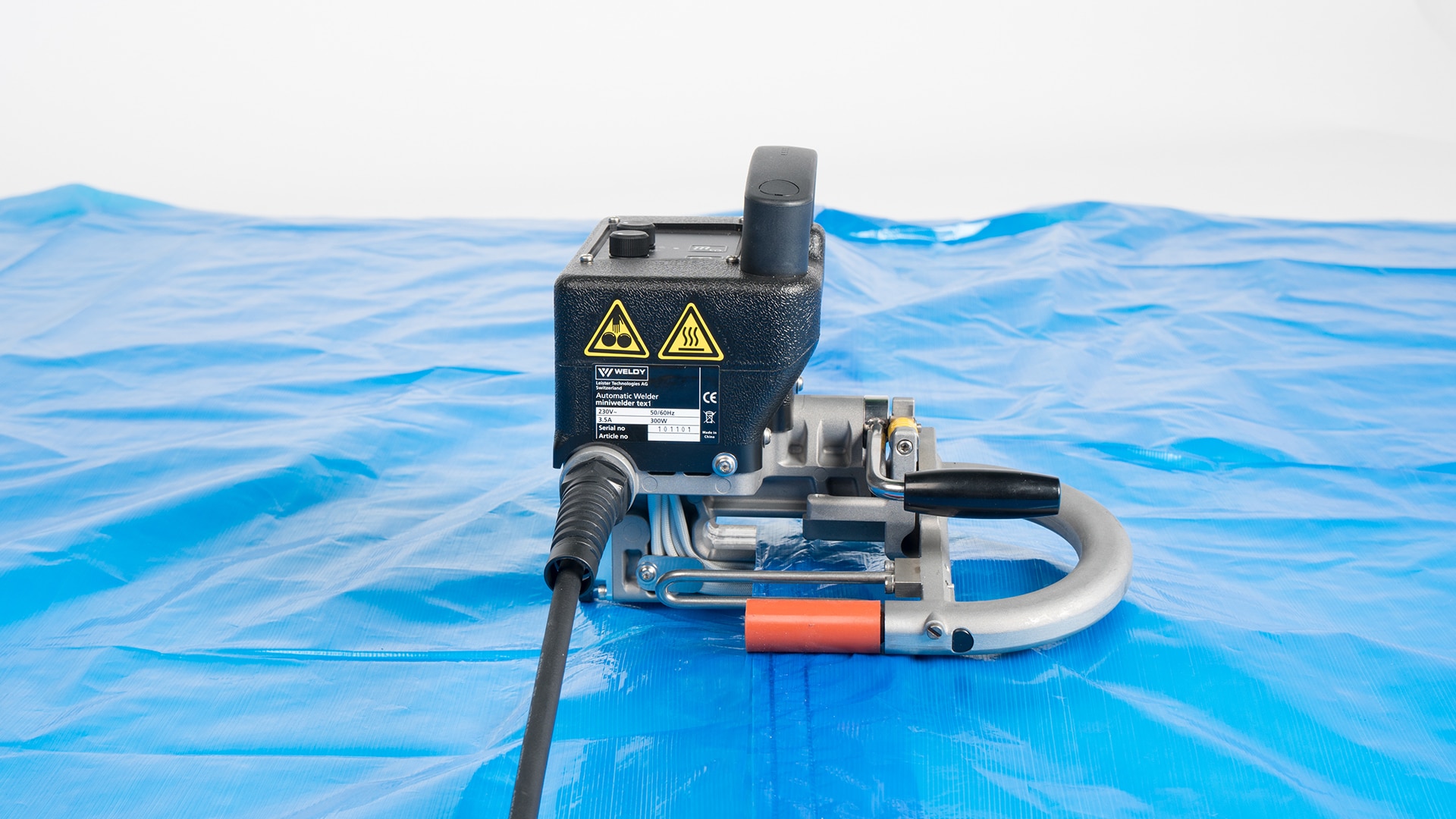

The Weldy miniwelder tex1 is perfect for welding thin films. Thanks to the innovative hot wedge, the mini-welder tex1 is suitable for almost all films or membranes such as PE, PVC, TPO or PP with a thickness of 0.05 to 1.0 mm. With the revolutionary control system, welding is extremely easy. Speeds up to 7.5 m per minute are not a problem with the welding machine, and welding temperatures between 60 and 480 °C. This welding machine is simple to use and intuitive. A transport box, hex key and a cleaning brush are included with delivery of the mini1.
Technical Data
Metric
Imperial
Voltage
230 V
Frequency
50/60 Hz
Power
300 W
Temperature
60 - 480 °C
Speed
0.4 - 7.5 m/min
Welding Technology
Hot wedge
Hot wedge length
40 mm
Hot wedge width
15 mm
Hot wedge material
Hard ematalised aluminum
Max. overlap
100 mm
Roll material
Silicone roller 50 shore A
LQS
The device features LQS (Leister Quality System) data recording
No
Display
No
Length
228 mm
Width
228 mm
Height
170 mm
Weight
3.5 kg
Welding materials
PE; PP; PVC; TPO; TPU
Weldable material thicknesses
The weldable material thickness depends on the material type and its properties.
