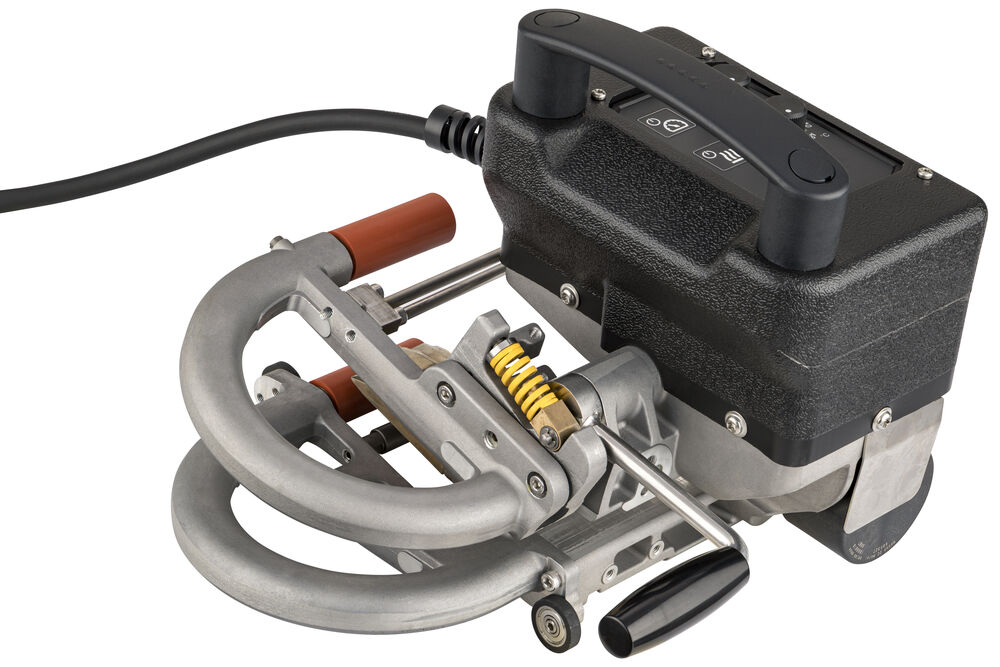

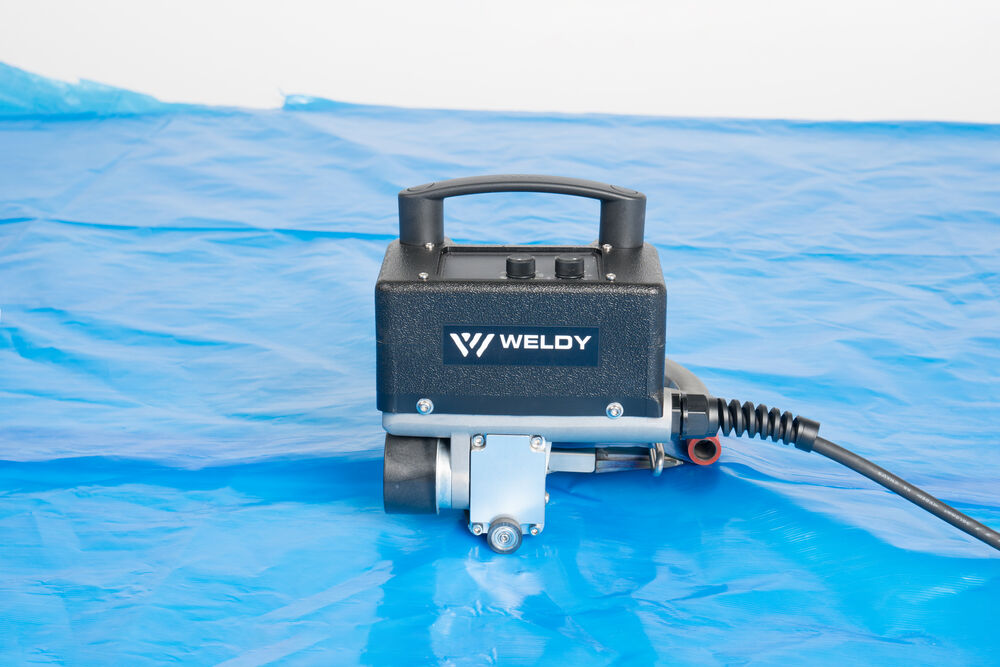

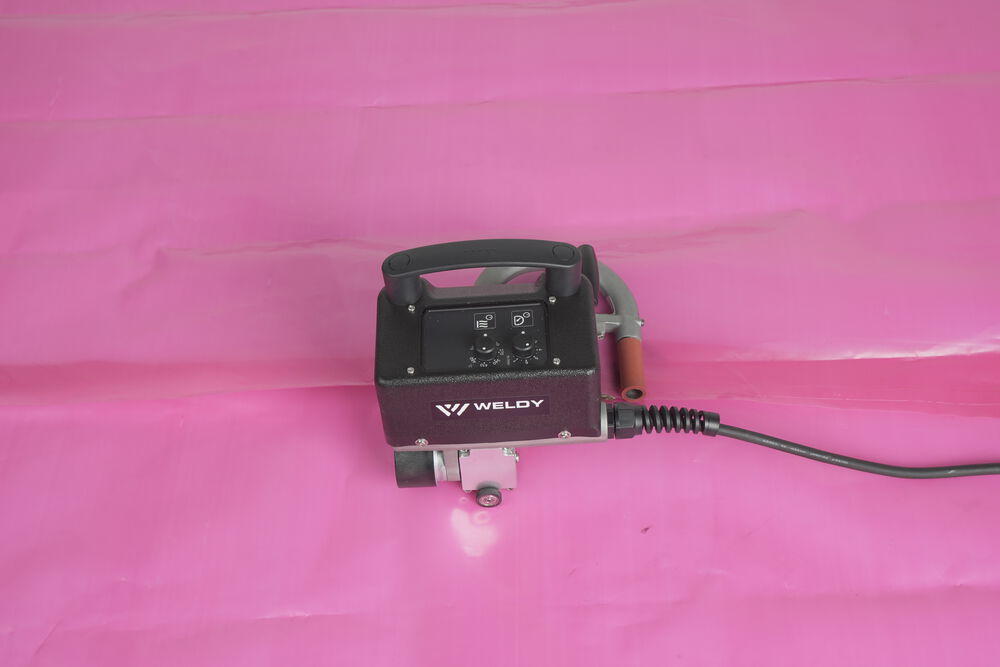

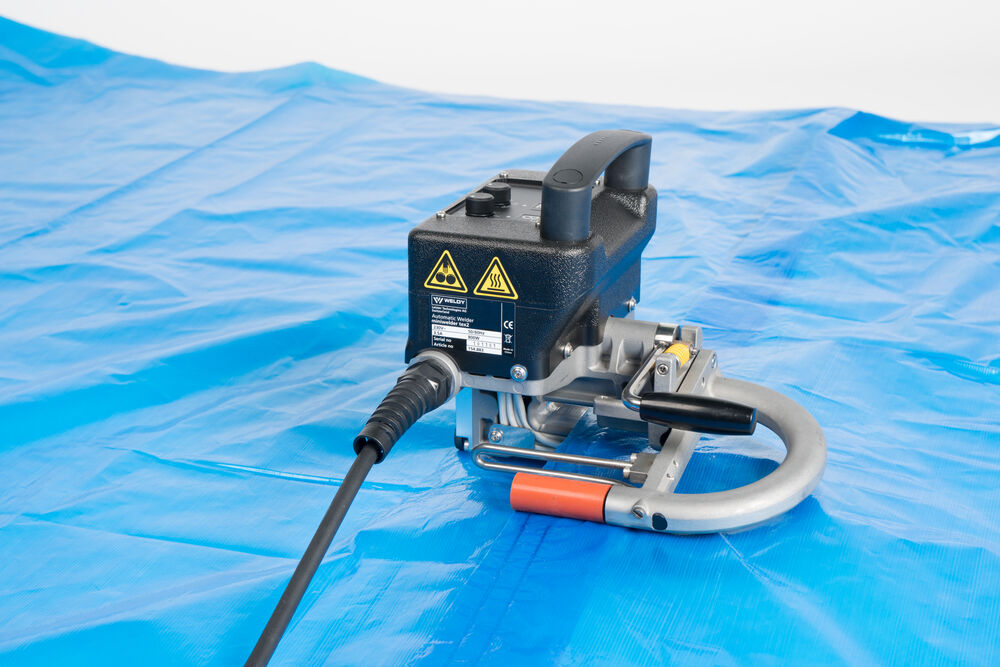

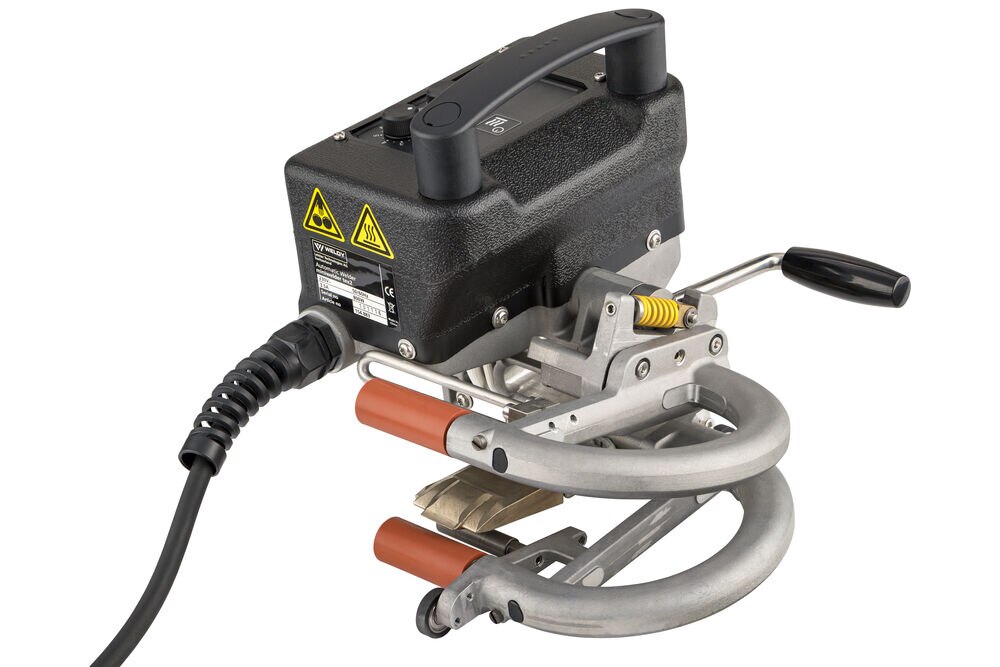

The miniwelder tex2 from Weldy is especially suitable for thin membranes. Thanks to its optimized wedge geometry, it welds membranes from 0.1 to 1.0 mm / 0.004 - 0.04 inch thick perfectly. With the help of its revolutionary control system, welding start-up is extremely easy. The miniwelder tex2 offers intuitive operation with impressive performance.
Technical Data
Metric
Imperial
Voltage
230 V
Frequency
50/60 Hz
Power
800 W
Temperature
60 - 480 °C
Speed
0.4 - 7.5 m/min
Welding Technology
Hot wedge
Hot wedge length
40 mm
Hot wedge width
20 mm
Hot wedge material
Copper; Stainless steel
Max. overlap
100 mm
Roll material
Silicone roller 50 shore A
LQS
The device features LQS (Leister Quality System) data recording
No
Display
No
Length
228 mm
Width
228 mm
Height
170 mm
Weight
3.6 kg
Welding materials
PE; PP; PVC; TPO; TPU
Weldable material thicknesses
The weldable material thickness depends on the material type and its properties.
0.1 - 1 mm
Power cable length
3 m
Plug
EU, 3 poles, 16A
Approvals
CB Certification; CE
Protection class
I
Country of origin
P.R. China
Highlights
Ideal for thin membranes
Optimized wedge geometry
4 kg / 8.8 lbs lightweight
Ideal for thin membranes

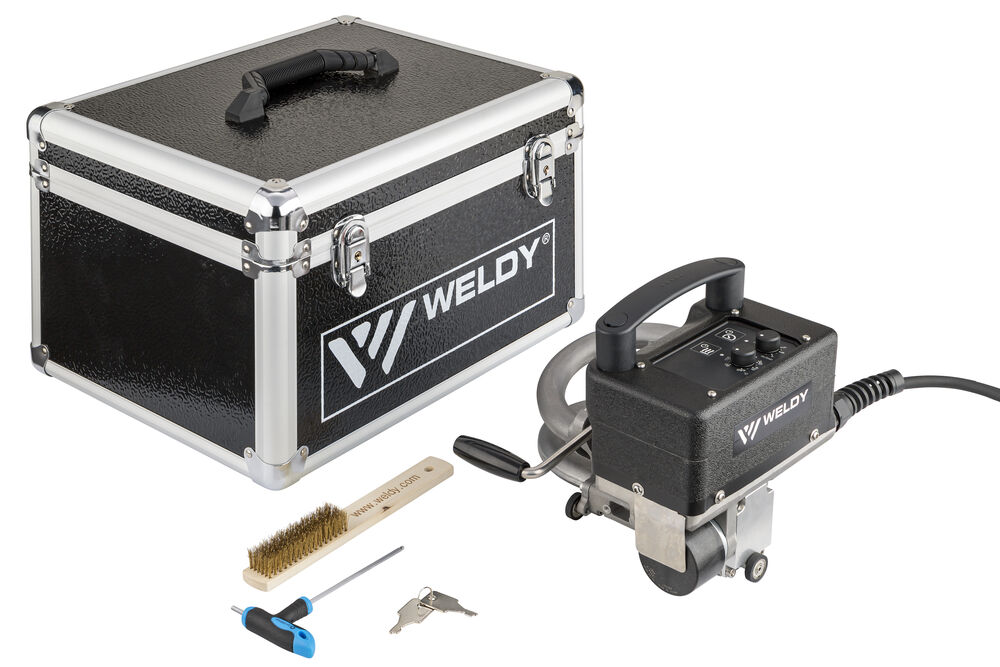

Includes a storage case and cleaning brush
Suitable copper and chrome steel heating wedges available
