Weldy hot wedge welding machine for welding geomembranes

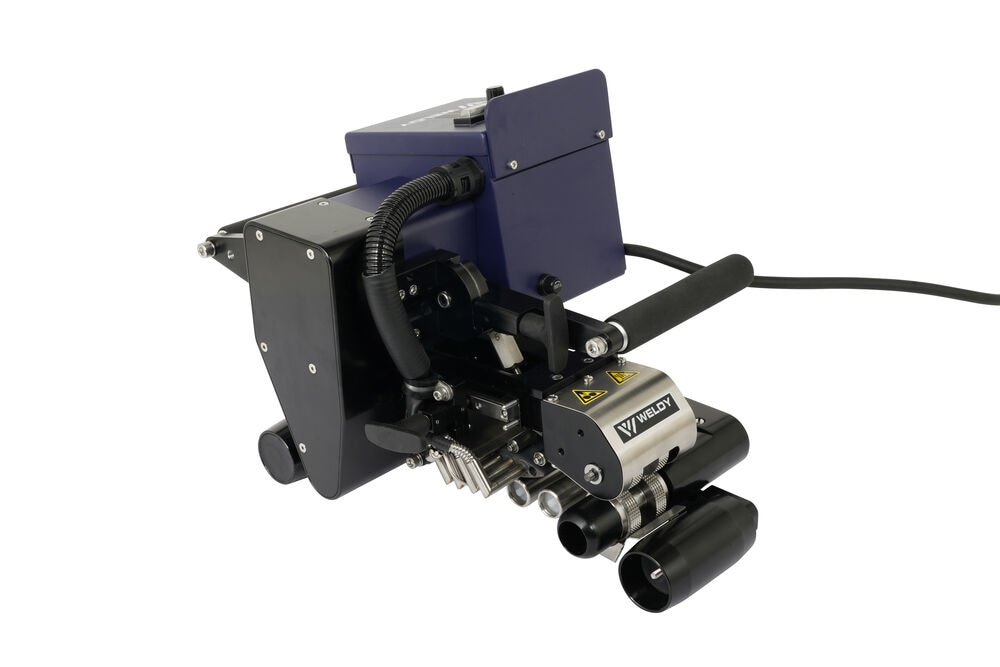

The WGW 300 hot-wedge welding machine from Weldy, a Leister brand, welds thermoplastic geomembranes made of HDPE (0.8 to 2.5 mm), LDPE, TPO, FPO, PVC* (0.8 to 3.0 mm), etc. effortlessly and reliably. The geomembranes are typically used in landfills and mines, as well as for aquaculture, fish farms, irrigation systems, etc. and are permanently welded together. The WGW 300 has been deliberately designed to be simple and robust. The electrical controls are intelligently arranged.
Technical Data
Metric
Imperial
Article
802.235
Voltage
230 V
Frequency
50/60 Hz
Power
1750 W
Temperature
450 °C
Speed
0 - 8.5 m/min
Welding Technology
Hot wedge
Hot wedge length
80 mm
Hot wedge width
45 mm
Hot wedge material
Copper
Max. overlap
150 mm
Max. welding pressure
1400 N
Weld seam width
2 x 12 mm / 2 x 0.47 in
Roll material
Steel roller sharp straight
Travel roller equipment
Indoor- Kit recommended for pre-assembly indoors, Field-Kit for outdoor applications
Field-Kit
LQS
The device features LQS (Leister Quality System) data recording
No
Display
Yes
Length
445 mm
Width
300 mm
Height
318 mm
Weight
15 kg
Welding materials
CSPE; FPO; HDPE; LDPE; LLDPE; PE; PP; TPO
Weldable material thicknesses
The weldable material thickness depends on the material type and its properties.
